Cov tshuaj tiv thaiv txhaj tshuaj molding qhov chaw
CFY yog lub chaw tsim tshuaj molding nrog ntau xyoo ntawm kev nplua nuj. Peb tshwj xeeb hauv ultra-high-precision micro-molding thiab micro-tooling nrog kev kam rau siab tswj ntawm ± 5 micrometers (μm).
- Khoom Taw qhia

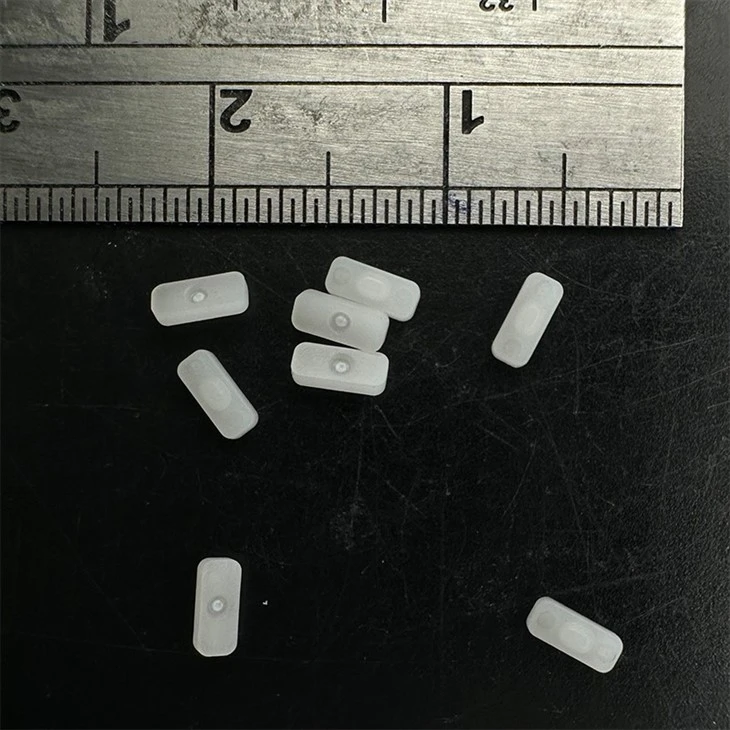

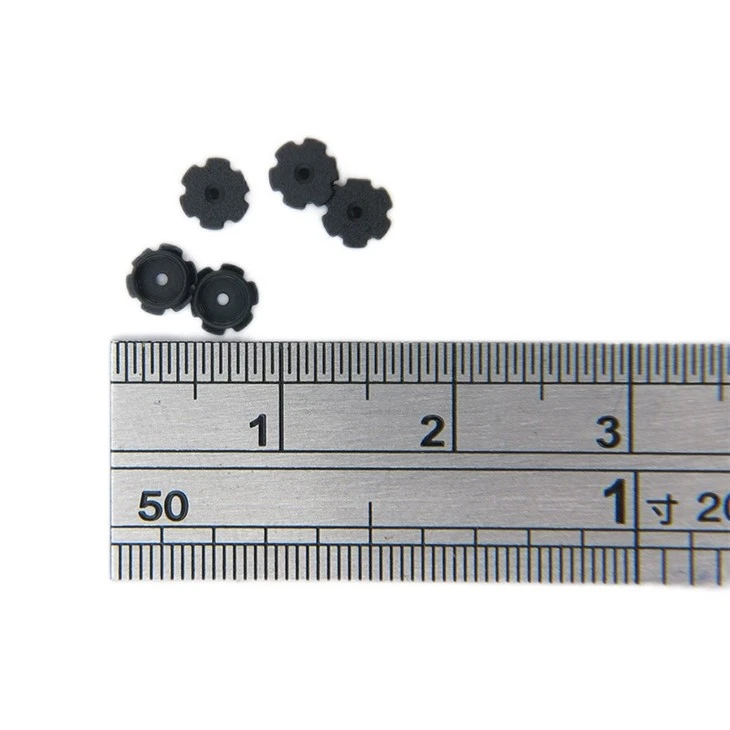

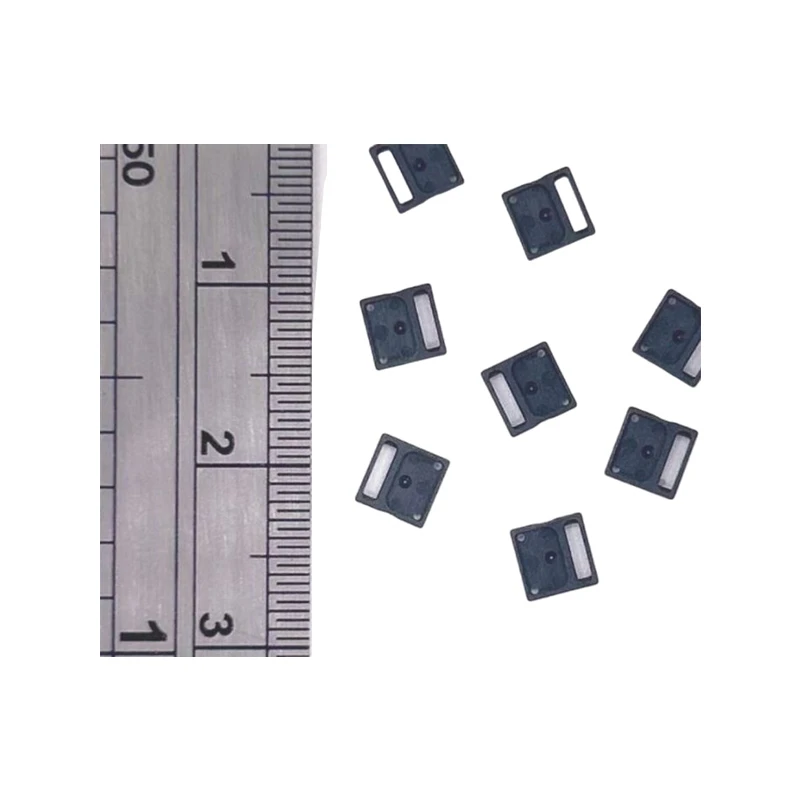

CFY yog lub chaw tsim tshuaj molding nrog ntau xyoo ntawm kev nplua nuj. Peb tshwj xeeb hauv ultra-high-precision micro-molding thiab micro-tooling nrog kev kam rau siab tswj ntawm ± 5 micrometers (μm). Txhua xyoo, peb txhaj pwm ntau lab ntawm cov khoom tsis raug cai rau kev kho mob, tshuaj, microfluidics, electronics, khoom siv hauv chaw ua haujlwm, thiab kev lag luam tsheb. Cov micro qhov no suav nrog nyias-walled, high-temperature, thiab ntau yam txhaj tshuaj tiv thaiv.
Los ntawm lub tswv yim, tsim, thiab 3D luam ntawv ntawm prototypes rau precision tooling thiab flawless ntau lawm, peb tuaj yeem pab koj daws cov teeb meem nyuaj tshaj plaws hauv micro thiab ua tau raws li koj qhov kev tsim khoom zoo thiab tag nrho cov khoom xav tau.
Thaum siv cov thev naus laus zis no, peb qhov tseem ceeb yuav tsum tau xav txog. Ua ntej, "micro" hais txog qhov loj ntawm qhov nws tus kheej, hais txog kev tsim khoom me me. Qhov thib ob, "micro-features" koom nrog cov khoom me me hauv cov rooj sib txoos loj. Txawm hais tias tag nrho ib feem yuav loj dua, qee yam khoom lossis cov yam ntxwv hauv nws tau suav tias yog micro loj. Thaum kawg, "micro-tolerances" xa mus rau qhov tseeb thiab qhov tseeb uas xav tau rau kev ntsuas qhov. Micro-molded qhov chaw yuav tsum tau ua raws li kev txhaj tshuaj molding tolerances. Cov no tuaj yeem qee zaum me me li ib txhiab ntawm ib nti kom ntseeg tau tias lawv ua raws li qhov xav tau tshwj xeeb.
Microinjection Moulds
Thaum cov khoom tsim thiab xaiv cov khoom tiav tiav, kev tsim cov micro-txhaj tshuaj pwm tuaj yeem pib.
Txawm hais tias cov khoom siv yog thermoplastic, organic silicon, lossis hmoov hlau, cov pwm yog qhov tseem ceeb tshaj plaws rau kev ua tiav.
Vim qhov me me ntawm cov khoom thiab pwm (raws li qhia hauv qab no), qhov ntev ntev ua rau me me.
Cov pwm tseem yuav tsum tau ua kom tau raws li 25% ib feem kam rau muab lub qhov rais ua haujlwm zoo.
Nrog rau cov khoom kam rau siab ntawm ±{{0}}.01mm, pwm kam rau ua yuav tsum yog ± 0.003mm kom ua tiav lub qhov rais ua haujlwm zoo.
Kev ua tiav zoo li no yog qhov nyuaj rau cov tuam txhab pwm tsim rau ob lub laj thawj tseem ceeb.
■ Tsis tuaj yeem ntsuas ±0.003mm kom raug, thiab nyuaj rau kev txheeb xyuas.
■ Tsis muaj khoom siv lossis kev txawj ntse kom ncav cuag cov kev zam no.
Product details:
Ntim Cov Lus Qhia: Carton, Ntoo rooj plaub, pallet, lossis raws li cov neeg siv khoom
kev xav tau.
Tus me nyuam nthuav dav: 25-35 hnub los ntawm hiav txwv, 3-7 hnub los ntawm huab cua
FAQ
Q: Micro Moulding yog dab tsi?
Micro-molding yog txheej txheem tsim tshwj xeeb uas tsim cov khoom me me, siab-precision thermoplastic qhov chaw thiab cov khoom siv nrog micron-theem kam rau ua. Cov txheej txheem pib nrog pwm fabrication, qhov twg ib tug pwm nrog ib tug kab noj hniav zoo li tus kom phim qhov xav tau ib feem yog tsim. Cov khoom siv thermoplastic lossis resin yog tom qab txhaj tshuaj sai rau hauv cov kab noj hniav, ua kom muaj kev kub ceev ntawm cov khoom lossis cov khoom.
Q: Cov Kev Sib Tw ntawm Micro Txhaj Moulding
Feem ntau cov haujlwm micro-assembly xav kom cov neeg ua haujlwm tuaj yeem xaiv thiab tso cov khoom siv microscopes uas muaj zog thiab cov tweezers me me. Kev sib dhos ntawm tes yog siv sijhawm ntev thiab kim. Cov neeg ua haujlwm sib sau ua ke xws li cov khoom me me xav tau lub qhov muag zoo, cov qauv nruj rau cov khoom tiav, thiab yuav tsum ua kom tau raws li qhov tsim nyog kev ntseeg siab rau nws qhov zoo.
Ib qho ntawm qhov nyuaj tshaj plaws ntawm kev txhaj tshuaj molding yog cov cuab yeej tsim. Tus yuam sij rau kev ua tau zoo yog nyob rau hauv cov khoom siv rau cov pwm dual-sided uas tuaj yeem tiv taus kev txhaj tshuaj siab tsis muaj dabtsi yog khoov, txawm tias tom qab ntau txhiab siv. Pwm tsim yog ib qho kev sib tw ntau dua rau micro-molding. Muaj tsawg tus neeg muab khoom muaj peev xwm ua tau raws li cov khoom siv steel siab nyob rau hauv micrometers.
Qhov no tseem tuaj yeem ua rau "kev sib cais." Txoj kab sib cais nqaim ntawm qhov kev sib tshuam ntawm ob sab ntawm pwm ntawm ib feem yas yog hu ua kab sib faib. Rau cov yas, cov seam me me no feem ntau tsis muaj teeb meem vim nws tsuas yog ob peb micrometers dav thiab feem ntau machined tawm. Hauv micro-molding, txoj kab sib cais tuaj yeem txiav txim siab qhov ua tiav ntawm kev sib dhos thiab cuam tshuam qhov haum ntawm cov khoom.
Tag nrho lub zog thiab qhov tseeb ntawm cov khoom yuav cuam tshuam los ntawm qhov chaw ntawm lub rooj vag, uas yog qhov nkag hauv pwm los ntawm cov yas txhaj rau hauv kab noj hniav. Xaiv qhov chaw raug rau lub rooj vag hauv lub cuab yeej yog qhov tseem ceeb los xyuas kom meej qhov zoo thiab cov txheej txheem ruaj khov. Cov rooj vag tuaj yeem tso cov cim lossis cov yas me me uas yuav tsum tau muab txiav thaum cov yas txias. Precision yog ib qho tseem ceeb heev, yog li yuav tsum tau saib xyuas thaum txiav thiab ua tiav cov qhab nia.
