EDM tshuab txiav
Chien Feng Yuan yog ib tug ua EDM (Electrical Discharge Machining), hlau edm manufacturing thiab CNC milling kev pab cuam tshuab rhiav raws li nyob rau hauv Taiwan.
- Khoom Taw qhia
Chien Feng Yuan yog ib tug ua EDM (Electrical Discharge Machining), hlau edm manufacturing thiab CNC milling kev pab cuam tshuab rhiav raws li nyob rau hauv Taiwan. Peb muab kev daws teeb meem rau tag nrho koj cov kev xav tau precision machining. Pab cov neeg siv khoom thoob ntiaj teb rau 14 xyoo, peb cov kev txawj ntse txuas mus rau aerospace, khoom siv kho mob, kev lag luam, tub rog, thiab kev lag luam tiv thaiv. Hauv peb lub sijhawm pab cov neeg siv khoom tsim cov khoom thiab cov khoom peb tau pom thiab ua tiav tag nrho. Kev paub & kev txawj ntse yog qhov tseem ceeb thaum nws los txog rau kev tsim khoom.
Muaj 3 ntau hom EDM:
Hlau EDM (Electrical Discharge Machining):

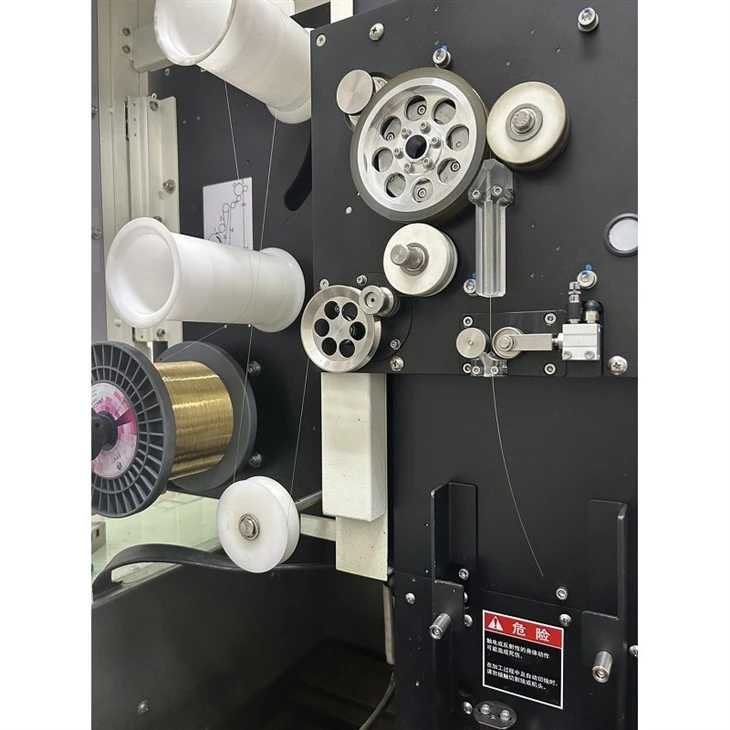

Hlau EDM yog txheej txheem electro-thermal uas siv cov hlau zoo hlau (feem ntau yog tooj liab, 0.006-0.012") raus hauv dej deionized los txiav cov hlau conductive. Lub tshuab xaim EDM tsim tawm ntawm cov hlau hlau thiab cov khoom ua haujlwm, siv cov cua sov uas tsim los ntawm cov hluav taws xob hluav taws xob los txiav los yog "hlawv" cov khoom siv.
Sinker EDM (tseem hu ua Conventional lossis Ram EDM):
Sinker EDM suav nrog cov electrodes ua ntej, cov kua dej dielectric, thiab kev yaig ntawm cov khoom siv hlau los ntawm cov khoom ua haujlwm los ntawm cov hluav taws xob. Nyob rau hauv cov txheej txheem no, ib tug customized-zoo li tus tooj liab los yog graphite electrode yog siv rau tshuab qauv los yog configurations rau txhua yam ntawm cov khoom siv conductive.
Qhov Drilling (los yog Punching) EDM:
Lub qhov Drilling EDM ntiav cov electrodes me me (Ø .006 - .050") txhawm rau tho qhov rau hauv cov ntaub ntawv tawv. Lub tshuab drilling EDM siv cov kua dej dielectric siab (feem ntau deionized dej) kom dhau los ntawm lub raj rau kev ua haujlwm. Thiab tshem tawm cov khib nyiab pov tseg.
Yuav Ua Li Cas Xaiv Txoj Cai EDM Hlau
Thaum xaiv EDM (Electrical Discharge Machining) xaim rau koj qhov project, xav txog cov hauv qab no:
Tensile zog:
Cov hlau muaj peev xwm tiv thaiv kev rub tawm ua ntej tawg lossis yielding.
Fracture Toughness:
Cov hlau tsis kam ua kom tawg lossis tawg thaum muaj kev ntxhov siab.
Hluav taws xob conductivity:
Cov hlau muaj peev xwm ua tau hluav taws xob zoo thaum lub sijhawm EDM txheej txheem.
Vaporization Kub:
Qhov kub ntawm cov khoom siv hlau hloov mus ua vapor. Qhov no yog qhov tseem ceeb hauv kev tiv thaiv cov hlau tawg ntxov ntxov thaum ua haujlwm EDM.
Hardness:
Cov hlau tsis kam rau deformation lossis indentation. Nws cuam tshuam cov xaim ua haujlwm tau zoo thiab nws tuaj yeem tiv taus hnav thiab tsim kua muag hauv cov txheej txheem machining.
Product details:
Ntim Cov Lus Qhia: Carton, Ntoo rooj plaub, pallet, lossis raws li cov neeg siv khoom xav tau.
Tus me nyuam nthuav dav: 25-35 hnub los ntawm hiav txwv, 3-7 hnub los ntawm huab cua
FAQ
Q: Qhov txawv ntawm EDM thiab Hlau Txiav EDM yog dab tsi?
EDM siv cov electrodes ua los ntawm tooj liab lossis graphite los txiav cov kab noj hniav hauv zos 3D. Cov electrodes lawv tus kheej yog machined los ntawm cov txheej txheem pa. Tom qab ntawd, cov hluav taws xob hluav taws xob tau ua haujlwm nyob rau hauv qhov siab ntawm qhov siab, tso cai rau kom txias thiab dej ntws tawm ntawm qhov chaw ua haujlwm. Thaum EDM yog qhov tseeb zoo li electrode machining, nws tso cai rau cov duab ntawm qhov chaw los ua qhov nyuaj heev los ntawm kev yaig. Txoj kev no yog ua haujlwm rau cov duab sib txawv thiab meej hauv cov pwm thiab cov cuab yeej tuag-casting. Nws tuaj yeem ua haujlwm ntawm cov ntaub ntawv pre-hardened, txo cov nqi tag nrho thiab tso cai rau kev ua kom tawv nqaij ntau dua yam tsis muaj cuab yeej deformation.
Ntawm qhov tod tes, xaim EDM cov tshuab siv cov khoom siv hluav taws xob txuas ntxiv mus rau qhov tseem ceeb 2D txiav. Cov txheej txheem no yog qhov zoo rau kev ua haujlwm precision ntawm txoj kev 2D contours hauv cov cuab yeej extrusion, xuas nrig ntaus / tuag, thiab kev ua tiav ntawm cov ntaub ntawv nyuaj hauv kev siv dav hlau thiab tub rog.
Q: Nws puas tuaj yeem xaim EDM Stainless Hlau?
Yog lawm, nws muaj peev xwm txiav stainless hlau siv hlau EDM. Austenitic qib ntawm stainless hlau yog tshwj xeeb zoo suited vim hais tias lawv yog hnyav ua hauj lwm-hardened pib nrog.
Yog tias koj qhov phiaj xwm tshwj xeeb yuav tsum muaj kev zam nruj lossis kev ua haujlwm ntev (hauv qab 0.001 ntiv tes), kev ua tiav qhov tseeb no yuav cuam tshuam nrog ntau EDM txiav lossis hlawv, uas, dhau los, yuav tsum tau siv sijhawm ntxiv.
Lub thickness ntawm ib feem kuj yog ib qho kev txiav txim siab ntawm lub sijhawm. Qhov tuab ntawm qhov, qhov qeeb qeeb. Thaum lub thickness ntau tshaj 4-5 ntiv tes, txiav ceev ntawm hlau EDM txo.
